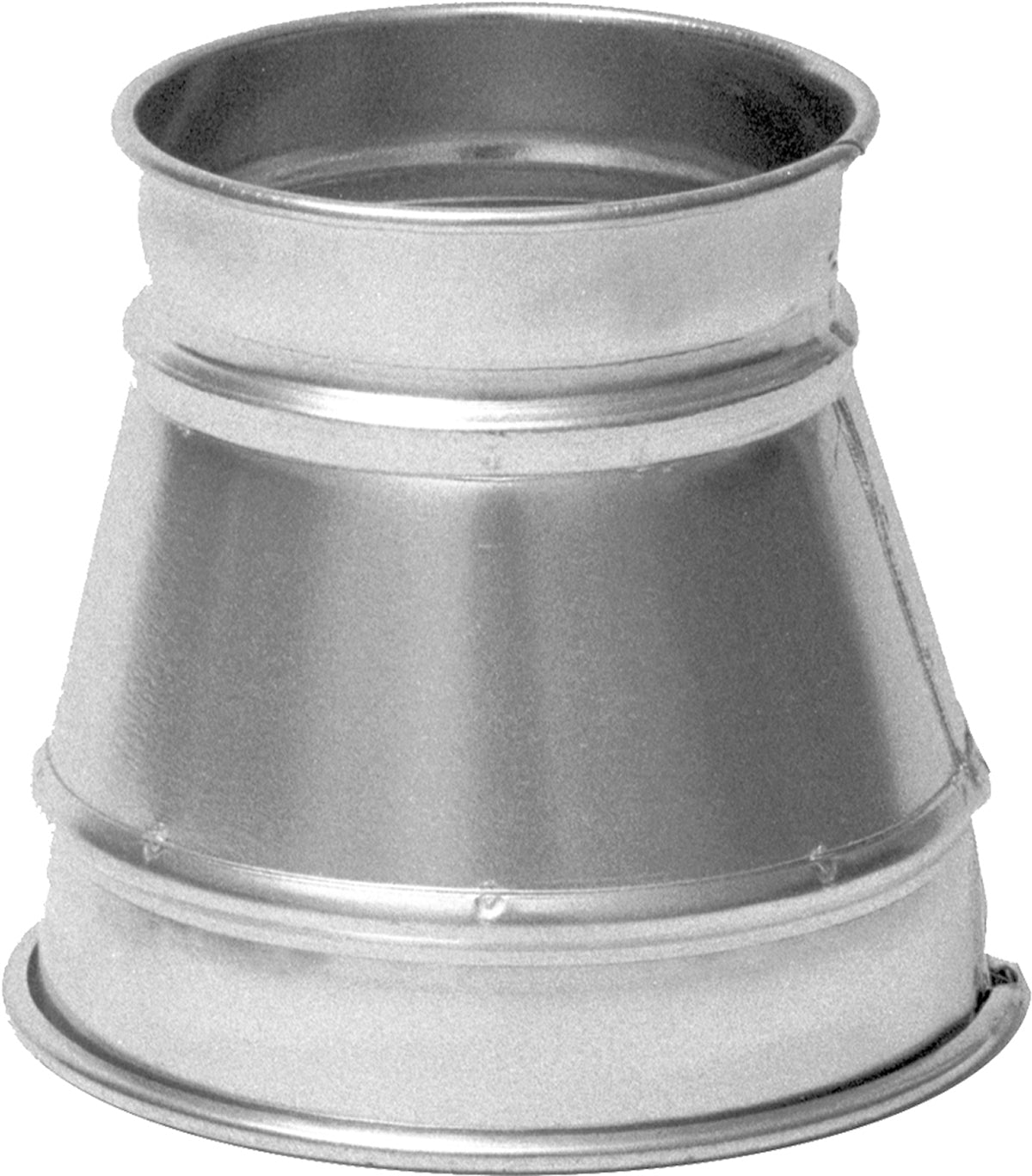

Venting Reducer/Inducer from Nordfab®, Single-wall Venting for Coffee Roasters
Nordfab items and drop-ship direct from Nordfab in North Carolina. They typically ship via UPS Gound unless your total order is large enough that freight shipping is more economical. Reach out if you have questions on fulfillment.
Please allow between 2 and 7 days for this manufacturer to have your order ready to ship.
The return of standard, resale-able, non-damaged venting parts will be accepted by Mill City Roasters within 2 weeks for store credit. A minimum 25% restocking fee will be assessed. Customer to cover all shipping. Contact us with questions and order carefully.
Material: Stainless steel, 20/22 gauge
Heat rating: 1100°F (593°C)
Standard dimensions:
| Nominal Diameter | Length | Raw end ID (actual) | Raw end OD (actual) |
| 3" | 5.5" | 3.03" | 3.10" |
| 4" | 4" | 3.86" | 3.93" |
| 5" | 4.87" | 4.94" | |
| 6" | 5.89" | 5.96" | |
| 8" | 7.88" | 7.95" |
The OD of this adapter in the 4" or larger nominal diameters can be inserted and sealed into standard parts of Z-Vent, Jeremias and Selkirk. For other brands that have end conditions smaller than the nominal dimension (such as Metal-Fab), you may need to purchase their boiler-type adapters that have adjusable cuff mechanisms that will allow you to cuff their adapter around the body of this adapter.
Apply a full-overlap layer of sealant with the appropriate high-temp sealer to meet NFGC requirements. If a mechanical connection is required by your municipality, use shallow screws or strapping to reinforce the connection.
Follow all codes applicable in your area. Don't burn down your roastery.
Additional design notes:
If the pipe you're connecting to is double-wall, you may consider a single-wall-to-double-wall adapter if you want a more finished look - it will close up the gap between your two walls. This is not required though as long as you have this space sealed on the exterior.
- Length can be modified (minimum of 1" long)
- Available in 20/22 gauge galvanized material where heat rating allows
- Diameter of ID/OD can be expanded up to 1/4" larger than standard ID/OD
