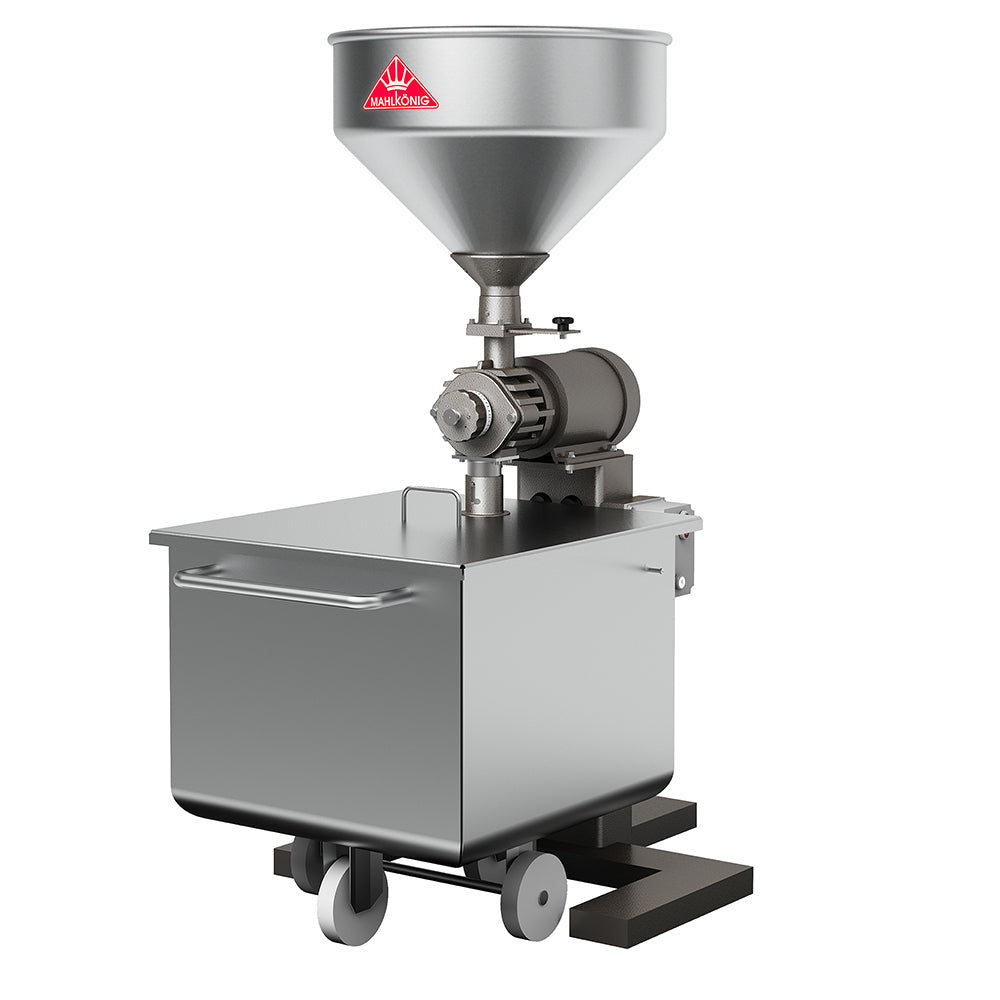

Mahlkönig DK15 Industrial Coffee Grinder
- The DK15 provides smaller roasters with the perfect entry to industrial grinding. It features an even, premium grinding quality produced by its wear-resistant burrs. Its capacity ranges from 105 kg up to 200 kg per hour, depending on the model.
Arrives in one crate
Crate: 53" x 50" x 70", 500 pounds (227 kg)
Request a quote to see costs to your location.
MPE provides a one (1) year warranty on manufacturer defects. Wear items are excluded.
- Outstanding even grinding quality
- Wear-resistant premium burrs
- Powerful three-phase motor with surface cooling and high starting torque – suitable for continuous operation
- Motor ventilation
- Overload protection
- Service-free, constantly greased bearings
- Ground material container (capacity 200 l)
- Bean hopper magnet
Machine size (w x h x d) 31.1" x 61" x 48.4" (incl. base)
Voltage // frequencies // phases:
- 380-415 V // 50/60 Hz // 3~
- 208-220 V // 50/60 Hz // 3~
Idle speed: 1440 rpm (50 Hz); 1730 rpm (60 Hz)
Burr diameter: 130 mm
Burr material:
DK15 LS, DM15 LS:
- Fully hardened special steel
- Grind Life (median setting): ca. 10-15 tons
DK15 L, DP15 L, DG15 L:
- Fully hardened cast steel
- Grind Life (median setting): ca. 15-20 tons
DK15 LH:
- Tungsten Carbide
- Grind Life (median setting): ca. 25-30 tons
Grinding capacity - fine* kg/h (approx.):
- 105 (DK15 L)
- 120 (DK15 LS, DK15 LH)
- 130 (DG15 L)
- 200 (DP15 L)
Grinding capacity - medium* kg/h (approx.):
- 115 (DK15 L)
- 130 (DK15 LS, DK15 LH)
- 150 (DG15 L)
- 220 (DP15 L)
Bean hopper capacity: approx. 30 kg
Max. nominal power: 2200 W
Dimensions (w x h x d):
- 79 x 155 x 123 cm (incl. base)
- 69 x 70 x 79 cm l 200 l (container)
Dimensions of packing (w x h x d): Depends on individual version and equipment
Net weight: 132 kg (incl. base)
Gross weight: Depends on individual version and equipment
Standard colors:
- Textured, reddish grey
Special equipment:
- Burrs for grains or for other grinding goods
- Electro-pneumatic gate for a controlled supply of material
- Stepless grind adjustment for DP15 L model
- Pulling tool optional accessory
Legend:
- DK15 L (Cast steel for Coffee)
- DK15 LS (Steel for Coffee)
- DK15 LH (Tungsten carbide for Coffee)
- DM15 LS (Steel for Poppy seed)
- DP15 L (Cast steel for Pepper)
- DG15 L (Cast Steel for Grains)
